Common features

LED Status indicator

Display of the device status and (field)bus communication via multi-functional LED(s). Direct control of the data stream, easy check for correct connection and activation.

Adaptable baud rates

New FTDI chip generation allows also the adjustment of non standard baudrates. Selected driver components provide best transmission properties.

COM Port compatible

Full PC compatibiliy by transparent access via virtual COM port, for instance COMx (Windows) resp. /dev/ttyUSBx (Linux).

What type suits you best

USB to RS232

USB232CONV - Extra large protection

No more undefinable converter breakdown when connecting RS232 devices because of ±15 kV against ESD, short-circuit proof, high current load ±60 mA.

USB to Isolated RS232

ISO232 - 1 Mbps with active outputs

High isolating strength for safe connection of potential shifted devices. Active RS232 outputs by integrated energy transfer. No additional power supply necessary.

USB to Isolated RS485

ISO485 Box/Cable - Universal and safe

A lot of setup possibilities cover a wide range of RS422/RS485 bus applications. By their high isolating capability they are usable in critical environments with potential shift.

Specifications

USB232CONV

Visit shop Leaflet & Manual

USB232CONV
Data rates	300...1 MBaud, also non-standard rates.
Handshake	RTS/CTS, DSR/DTR, Xon/Xoff, all handled in hardware for fast reaction.
Protocol	7 or 8 data bits, 1 or 2 stop bits, None, Odd, Even, Mark or Space parity.
Signals	Full set of RS232 modem data and control lines, support of break command.
Chipset	FTDI FT232BM: Additional functions for high transmission safety, internal data buffer of 512 bytes (input 384 bytes, output 128 bytes).
Electrical	Extra large ESD input protection of ±15kV, RS232 outputs short-circuit proof, high current loads ±60mA.
Isolation	No
Featuring	Configurable as parallel IO port with 3 inputs and 5 outputs (FTDI BigBang mode).
Connectors	USB: USB Cable about 1 m length with PC compatible type A connection jack and integrated inductance. RS232: Standard RS232 DSub9 Male Connector with undetachable UNC screw nuts.
OS support	Microsoft certified drivers for Windows 11, 10, 8/8.1, 7, Vista, Windows XP. Linux: Supported since Kernel 2.4.x.

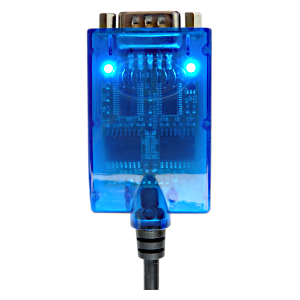

ISO232

Visit shop Leaflet & Manual

ISO232
Data rates	300...1 MBaud, also non-standard rates.
Handshake	Fully assisted hardware (RTS/CTS, DTR/DSR) and X-On / X-Off software handshaking on chip for fastest response times.
Protocol	7 or 8 data bits, 1 or 2 stop bits, None, Odd, Even, Mark or Space parity.
Signals	Full set of RS232 modem data and control lines (TXD, RXD, RTS, CTS, DSR, DTR, DCD, RI und GND), support of break command.
Chipset	FTDI FT232RL: Additional functions for high transmission safety, internal data buffer of 384 bytes (input 128 bytes, 256 output bytes). USB serial number for individual COM port assignment.
Electrical	Active RS232 outputs ± by integrated energy transfer, ±15kV ESD protection.
Isolation	Yes - High isolating strength 1600Vrms 1 min.
Featuring	Parallel read/write of the signal lines like an IO port (5 inputs, 3 outputs).
Connectors	USB: USB Cable about 1 m length with PC compatible type A connection jack and integrated inductance. RS232: Standard RS232 DSub9 Male Connector with undetachable UNC screw nuts.
OS support	Microsoft certified drivers for Windows 11, 10, 8/8.1, 7, Vista, Windows XP. Linux: Supported since Kernel 2.4.x.

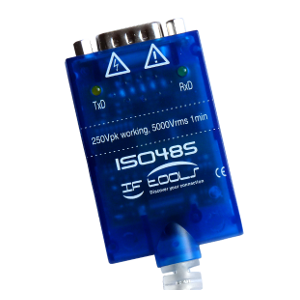

ISO485

Visit shop Leaflet & Manual

ISO485
Data rates	300...460800 Baud, also non-standard rates.
Handshake	Feed back of the signals RTS/CTS and DTR/DSR in input and output for protocol simulation.
Protocol	7 or 8 data bits, 1 or 2 stop bits, None, Odd, Even, Mark or Space parity.
Signals	TxD, RxD according to RS485 standard.
Chipset	FTDI FT232RL: Additional functions for high transmission safety, internal data buffer of 384 bytes (input 128 bytes, 256 output bytes). USB serial number for individual COM port assignment.
Electrical	±15kV ESD protection.
Isolation	Yes - 5000Vrms 1min, 250Vpk working range.
Featuring	Externally selectable operation mode (RS422/RS485 mode, full/half duplex bus, echo on/off, termination resistors).
Connectors	USB: USB Cable about 1 m length with PC compatible type A connection jack and integrated inductance. RS232: Standard RS232 DSub9 Male Connector with undetachable UNC screw nuts.
OS support	Microsoft certified drivers for Windows 11, 10, 8/8.1, 7, Vista, Windows XP. Linux: Supported since Kernel 2.4.x.

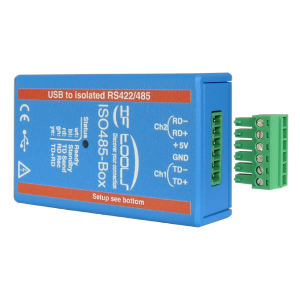

ISO485-BOX

Visit shop Leaflet & Manual

RS422/485 Side
Data rates	300...1 Mbps, also non-standard rates. Additional higher rates of 1.5 Mbps, 2 Mbps and 3 Mbps.
Data format	7 or 8 data bits, 1 or 2 stop bits, None, Odd, Even, Mark or Space parity.
Handshake	Feed back of the signals RTS/CTS and DTR/DSR in input and output for protocol simulation.
Signals	TxD, RxD according to RS485 standard, ±15kV ESD, ±5V difference voltage.
Connector	6pin plug connector with screw terminals. Type Phoenix MC156ST381.
Auxiliary voltage	Auxiliary secondary voltage output 5V/200mA to supply external devices or special bus terminations. Short-circuit proof, connected to the RS485 supply.
USB PC Side
Connector	USB: USB Type B socket for PC connection and power supply.
Compatibility	Compatible to USB 1.1/2.0. Absolutely functional with all USB-Interfaces of old and new PCs.
Special features
Selectable modes	Easy selectable operation modes (RS422/RS485 mode, full/half duplex bus, echo on/off, including termination and bias resistors) via external switches.
Status display	Display of the device status and fieldbus communication with one single multi-color LED. Extended display of transferred data to indicate even a single data byte at high data rate.
Isolation	Isolation strength 2kVdc 1 second.
Chipset	FTDI FT232R: Additional functions for high transmission safety, internal data buffer of 384 bytes (input 128 bytes, output 256 bytes). USB serial number for individual COM port assignment.
Supported OS & Drivers
Windows	Windows 11, 10, 8/8.1, Windows 7, Vista, Windows XP, (32 and 64 bit, all with Microsoft certified driver).
Linux	Kernel 2.4.x or higher, needed driver (ftdi_sio module) is part of all newer kernels.
